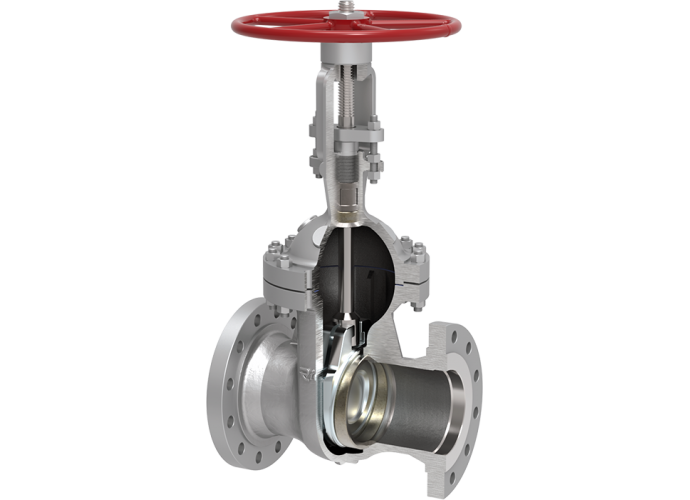

Flexible Wedge Gate Valves - Bolted Bonnets
- Product Type: OS&Y, Rising Stem
- Size Range: 2” to 64”
- Pressure Class: 150#, 300#, 600# (other pressure classes available upon request)
- Material of construction: Carbon Steel (A105-WCB), Low alloys (F1-WC1, F11-WC6, F22-WC9), High alloys (F91-C12A, F92 and Stainless Steels), Nickel Alloys (Inconel, Monel, Hastelloy, Duplex and super Duplex); other materials available upon request
- Handwheel, Gear Operator, Actuated
DESIGN FEATURES
- ANSI B16.34, BS 1873, EN 12516 in Forged or Cast Body.
- Trim Material as per API 600.
- Materials 100% European.
- Full traceability of all components provided with strict application of the re-stamping procedure.
