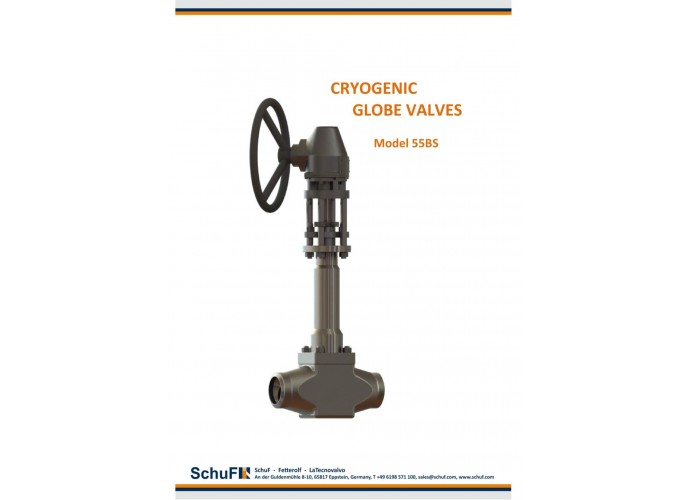

Cyrogenic Globe Valves Type 55BS

Cyrogenic Globe Valves Type 55BS

Cyrogenic Globe Valves Type 55BS



Design Features

-          Valve sizes ranging from DN32 to DN100

-          Pressure Classes: ASME 150 to ASME 1500 / PN 10 to PN 100

-          Temperatures: down to -220°C

-          Full bore and regulating bores are available

-          End connections:

Flanged: as per ASME B16.5 for ASME-rated valves and as per EN 1092 for PN-rated Valves

Welding ends: as per ASME B16.25

Other connections: Clamped connectors, upon request

-          Face-to-face: as per API 6D / ASME B16.10 as standard.

Others upon request



Design Options



-          Copper alloy & Monel construction for oxygen service are available

-          Non-Sparking throttling disc option

-          Hard-faced sealing surfaces are available

-          Materials in accordance with NACE standards are available

-          Lockable handwheels are available for valves located in critical or dangerous areas

-          EIGA, NASA, NFPA, and DOT compliant designs are available

-          Live load graphite packing for high pressure applications



Materials of Construction (typical)



Body and trim parts

-          Stainless steels: ASTM A351 CF8M / ASTM A182 F316(L) / ASTM A182 F304(L)

-          Duplex steels: UNS S32750 / UNS S31803 /ASTM A995 Gr. 4A or 5A

-          Nickel-alloy steels: Monel® / Incoloy®/ Inconel®/ Hastalloy®

-          Copper and brass alloys are also available

Seat materials

-          Soft seats: PTFE (with additives), TFM, PEEK

-          Tungsten Carbide, Monel, and Inconel

-          Gold and silver coatings are also available
