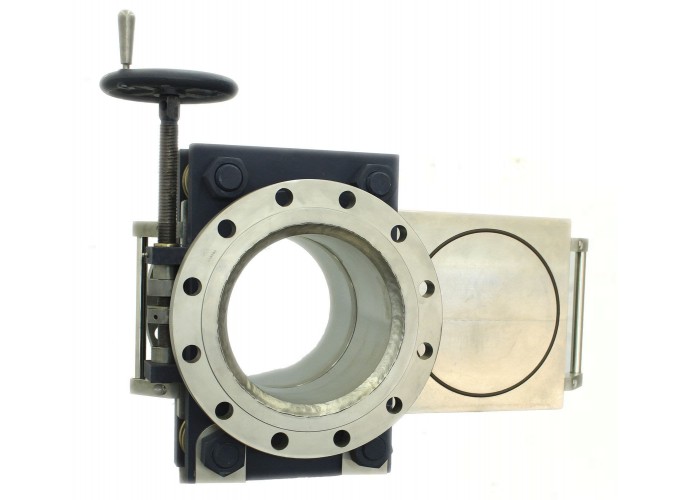

Line Blind Valve

Line Blind Valve

Line Blind Valve

Cam-Set®, Cam-Slide®, Cam-Goggle® Stacey™ Specifications



Item

Standard Features

Optional Features

Size

DN 10-15 (1/2") to DN 1200 (48")

Cam-Goggle to DN 2500 (100”)

Pressure Class

ASME 150#, 300#, 600#

Cam-Slide to ASME 2500#

Body

Carbon steel

316 stainless steel; others on request

Spectacle Plate

Stainless steel

Duplex, Hastelloy, Alloy 20, Inconel,Nickel, Monel & Titanium

Stem

Carbon steel

Monel

Bolting

Carbon steel

316 stainless steel; others on request

O-Rings

Viton, Buna-N

Aflas, Teflon, Nordel, Chemraz, Kalrez and others depending on application

Temperature

232°C / 450°F

Up to 800°C / 1472°F with special design Cam-Slide

Pipe Connection

Butt weld end

Flanged

Drain/Purge Connection

n/a

Line drain, purge or sampling valve combinations are possible

Coatings

Standard paint

Epoxy, Polyurethane, Sermetel,

Ceramic and many others

Reduced Face to Face Dimensions

n/a

Yes with compact Cam-Slide model

Counterweight or roller support

n/a

Yes; recommended on large sizes

Locking device

n/a

Yes

Standards/Certification

ASME, DIN, CRN, ISO, PED

NACE

Actuation

Hex nut

Hand wheel, pneumatic, hydraulic
