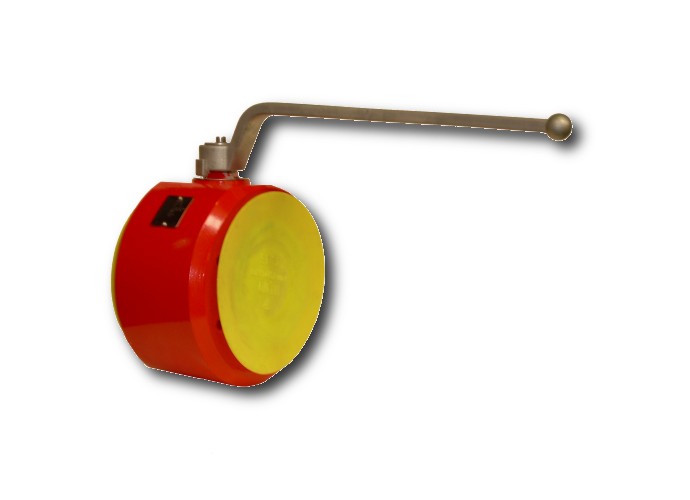

Floating ball valve - V Type

1 piece, cast or drop forged

Carbon or stainless steel

CE 97/23/CE all categories

Fire safe acc to BS6755

Classes ASME/ANSI ISO PN 20 to ISO PN 100

Classes DIN-PN PN 10 to PN 40

ND 1/2'' (15) to 6'' (150)

Wafer type

In line tightness by soft or metal to metal sealing

Full and reduced bore

Solid ball

Blow out proof stem

Fix seats with automatic internal relief (on customer request only)

ISO TOP FLANGE ACC to ISO 5211 (for actuators)

Insulation extension on request

Manual, lockable operation
